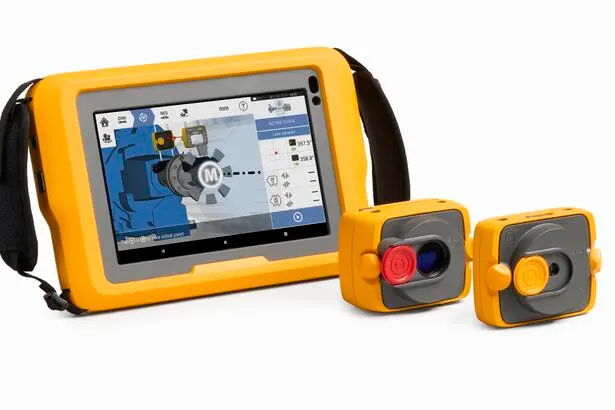

Fluke 832激光对中仪

品牌：Fluke

型号/货号：Fluke 832

General specifications
CPU	Processor:	Octa-Core (8): 2.2 GHz (2) and 1.8 GHz (6)
CPU	Memory:	4 GB LPDDR4X SDRAM/64 GB UFS Flash
Display	Technology:	Corning® Gorilla® Glass
	Resolution:	600 nits, color WXGA 1280x800
	Dimensions:	8 inch/20.3 cm
Power supply	Operating time:	Up to 11 Hours
	Battery:	6100 mAh 3.87 V rechargeable Li-Ion Polymer; (23.61 Wh)
	Charging:	USB-C
Connectivity	Wifi:	IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax 2x2 MU-MIMO; Wi-Fi® certified; IPv4, IPv6 (Wi-Fi 6)
	Bluetooth:	Bluetooth v5.1 / 2.1+EDR Class 2 (Bluetooth LE)
	RFID:	Integrated RFID with read and write capabilities Docking connector (charge and data) USB-C side port (tablet charging and data only)
Environmental protection	IP 65:	Dustproof and water jets resistant
Environmental protection	Relative humidity:	5% to 95% non-condensing
Drop test	1.2 m (4 ft)
Temperature range	Operation:	-20°C to 50°C (-4°F to 122°F)
Temperature range	Storage:	-40°C to 70°C (-40°F to 158°F)
Dimensions	267 mm L x 171 mm H x 35 mm D 10 33/64" x 6 47/64" x 1 3/8"
Weight	930 g/2.1 lbs
Camera	Rear:	Image capture: 13 MP auto-focus camera with user controllable LED flash
Camera	Front:	5MP
CE conformity	Refer to the CE compliance certificate
Carrying case	Dimensions	595 x 355 x 115 mm (23 1/2" x 14" x 4 1/2")

General specifications
Type	6-axis	2 planes (4 displacement axes and 2 angles)
Measurement	Optical range	14 x 14 mm (0.55 x 0.55 in.)
	Area	Unlimited, dynamically extendible
	Resolution	1 μm (0.04 mil); Angular 10 μRad
	Error	< 2%
	Transmitted rate	Approx. 20 Hz
Inclinometer	Resolution	0.1°
Inclinometer	Error	Roll +-1°; Pitch +- 3°
LED indicators	1 LED for laser adjustment, battery and charge status; 1 LED for BT communication
Power supply	Battery	Lithium-Ion rechargeable battery 3.7 V, 4.7 Wh
	Operating time	30 hours (continuous use)
	Charging time	2.5 h for up to 80%; 4 h for up to 100%
	Charging	USB-C
External interface	Integrated low power 2.4 GHz Radio (BT LE); USB 2.0 Full Speed
Radio transmission distance	Up to 50 m (160 ft) direct line of sight
Environmental protection	IP 65	Dustproof and water jets resistant, shockproof
Environmental protection	Relative humidity	10% to 90%
Ambient light protection	Optical and active electronic digital compensation
Temperature range	Operation	-10°C to 50°C (14°F to 122°F)
	Charging	0°C to 35°C (32°F to 95°F)
	Storage	-20°C to 50°C (-4°F to 122°F)
Dimensions	Approx. 104 x 72 x 54 mm (4 1/8" x 2 13/16" x 2 1/8")
Weight	Approx. 231 g (8.2 oz)
CE conformity	Refer to the CE compliance certificate

General specifications
Type	Semiconductor laser diode
Laser	Power	< 1 mW
	Divergence	0.3 mrad
	Wavelength	630-640 nm (red, visible)
	Separation distance	Up to 10 m
	Adjustment	No
	Safety class	Class 2 according to IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019. Safety precaution: Do not look into laser beam
Inclinometer	Resolution	0.1°
Inclinometer	Error	Roll +-1°
LED indicators	1 LED for battery and charge status
Power supply	Battery	Lithium-Ion rechargeable battery 3.7 V, 4.7 Wh
	Operating time	40 hours (continuous use)
	Charging time	2.5 h for up to 80%; 4 h for up to 100%
	Charging	USB-C
Environmental protection	IP 65	Dustproof and water jets resistant, shockproof
Environmental protection	Relative humidity	10% to 90%
Temperature range	Operation	-10°C to 50°C (14°F to 122°F)
	Charging	0°C to 35°C (32°F to 95°F)
	Storage	-20°C to 50°C (-4°F to 122°F)
Dimensions	Approx. 101 x 75 x 37 mm (4” x 2 15/16” x 1 7/16”)
Weight	Approx. 190 g (6.7 oz)
CE conformity	Refer to the CE compliance certificate
